Industrial Gas Cooking Mixer Pot Electric Steam Jacketed Kettle Mixer Cooker Agitator
Brief Introduction:The sandwich pot is also known as steam pot, cooking pot, and sandwich steam pot. Usually consists of
Send your inquiryDESCRIPTION
Basic Info
After-sales Service | Video Technical Support, Online Service |
Warranty | 2 Year |
Usage | Sauce, Jam, Paste, Soup |
Power Source | Electric/Gas |
Timing Device | With Timing Device |
Type | Mixer |
Voltage | 220V |
Customized | Customized |
Transport Package | Wooden Box |
Specification | 560*600*590 mm |
Trademark | Penghui |
Production Capacity | 100sets/Week |
Product Description
Brief Introduction:The sandwich pot is also known as steam pot, cooking pot, and sandwich steam pot. Usually consists of pot body and feet. The pot body is a double-layer structure composed of inner and outer spherical pot bodies, and the middle interlayer is heated by steam. There are fixed, tiltable, stirring and other styles. The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability.Features:
- According to the structure, it can be divided into: tiltable sandwich pot, vertical (fixed) sandwich pot structure.
- According to the heating method, it is divided into: electric heating interlayer pot, steam heating interlayer pot, gas heating interlayer pot, electromagnetic heating interlayer pot.
- According to the needs of the process, each with or without stirring equipment is used.
- According to the sealing method, the sandwich pan can be divided into: no cover type, flat cover type, vacuum type.
- the whole frameThe fixed type is mainly composed of the pot body and the supporting legs;The tiltable type is mainly composed of a pot body and a tiltable rack;The stirring type is mainly composed of a pot body and a stirring device.The pot body is a double-layer structure composed of inner and outer spherical pot bodies, and the middle interlayer is heated by steam.
- Feet
- Vertical sandwich pan: triangular pyramid type, round tube type.Tilting sandwich pan: channel steel bracket type.
Model | PH50 | PH100 | PH200 | PH300 | PH400 | PH500 | PH600 | PH800 | PH1000 | |
Capacity(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
Caliber(mm) | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | |
Depth(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 | |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 | |
Working pressure | ≤0.09Mpa(customizable) | |||||||||
Mixingspeed | 36r/min(customizable) | |||||||||
Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Company Information
Henan Penghui Machinery and Equipment CO.,Ltd's factory was built in 2010, its exporting company was assessed gold supplier in 2015 by alibaba. It is specialized in the production of spring roll wrapper making machine.We will supply 100% QC inspection before shipment and 100% guaranteed after sales service. Top quality machinery is waiting for your choose.
Our Services
Pre-sales Service:1. Inquiry and consulting support2. Offerring more machine information as clients requested3. View our factory4. 24Hours on line to solve any questionsAfter sale service:1. One year warrantee2. Training how to operate the machine and how to use the machine
Packaging & Shipping
Package:Standard export Wooden box packing.Delivery time:3-20 days after confirming order, detail delivery date should be decided according to shipping.
FAQ
Q: Are you manufacturer?
A: Yes,we are manufacturer with more than 20 year'experience
Q: Can you ship the machine to my address?
A: Yes, we could use DHL to delivery the machine while the transport cost will be not cheap. And it is suitable for this kind of machine
Q: Where are you? Can we go to China and visit your factory?
A: Yes,of course. We are in Henan, China. Welcome to our factory
Q: Do you have manual with the machine?
A: Yes, of course. It is in English version
Q: Can you offer us the necessary paper to do the customs clearance?
A: Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy(if CIF terms), also CO if you need.
Related Products
-
Grinding Machine 1530 Ball Mill Dry and Wet Model Making Sand for Sale
-

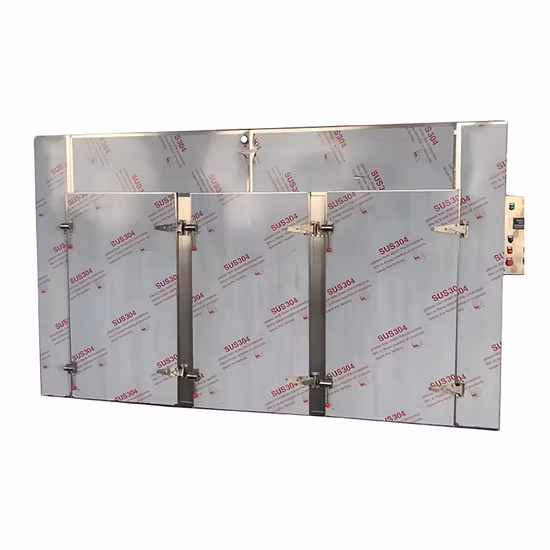

Stainless Steel Industrial Dehydrator Dehydration and Drying Equipment
-

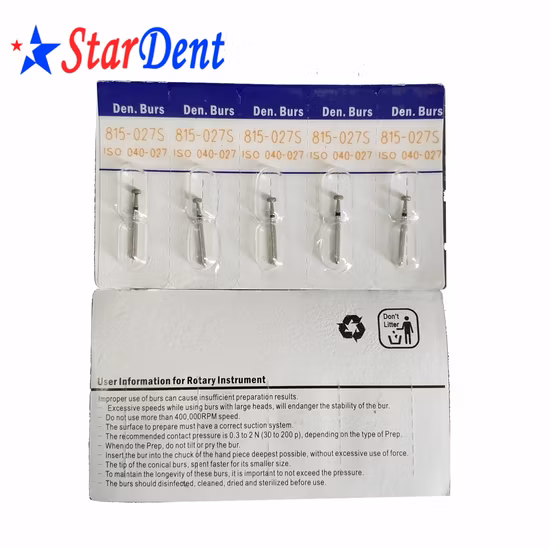

New Dental Diamond Burs of Hospital Medical Lab Surgical Diagnostic Dentist Clinic Equipment
-
