DESCRIPTION

Basic Info

Model NO.	EDW
Condition	New
Function	Wet Grinding/ Milling
Grinding Medium	Zirconia Beads
Applicable Industry	Coating, Paint, Ink, Pigment, Latex
Materials	Stainless Steel or Pure Zirconia
Usage	Industrial
Product Type	Paint
Transport Package	Wooden Case
Specification	EDW-5L----EDW-100L
Trademark	ELE
Origin	Shanghai, China
HS Code	8479820090
Production Capacity	200-2000L

Product Description

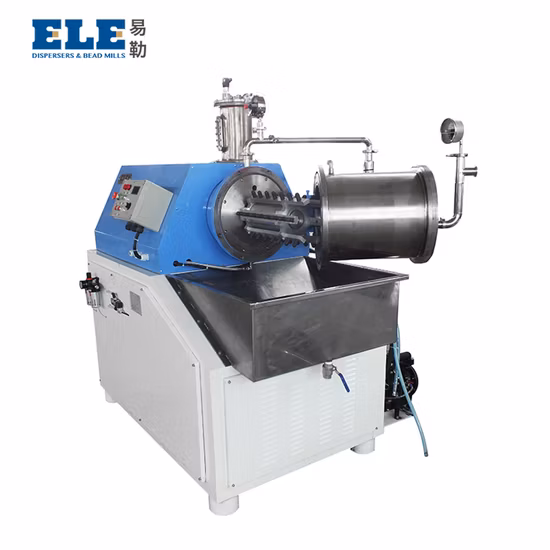

EDW Series Pin Type Bead Mill Nano grindingIntroduction

1. ELE Pin type bead mill is high energy & energy concentrated wet grinding mill.
2. ELE Pin type bead mill is Suitable for products with high viscosity, high solid content & high refining requirements, for continuous or circulating process operations.
3. EDW Pin type bead mill adopt unique large area tubular reseau centrifugal separator, precise separation & smooth discharging, solve the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding medium. At the smallest 0.05 discharging sieve can be applied.

Specification

1. Special Pin type contracture will pass higher power to the grinding beads,
2. High Filling rate of grinding beads, more hit, more shearing force to the products, break down the particle size more quickly.
3. Final particle size is narrow distributed.
4. ELE-NET0.05 discharging sieve is designed for superfine material, to ensure of large flow rate, and microbeads can be used at the same time;
5. Selection of special material (zirconia / silicon carbide/hard alloy steel etc. ) enhance wearability of all processing contact parts, It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
6. Unique double cartridge mechanical seal, to ensure long operation of shaft seal, maximum 8 -10 kg pressurue
7. Advantages

   Special Feeding System:
   Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank

   Discharging System: New technology of Discharge method
   Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads
8. Special Mechanical Seal & Bearing Housing:
9. Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
10. Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.
11.
    Cooling system:
12. High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
13. Feeding pipe with jacket for cooling
14. End cover corrugated cooling
15. Cooling Tank for Mechanical Seal
16.
    Application
    Pin type horizontal bead mill is suitable for 2microns, 1microns or even below 1microns, nanometers, like 50nm, 100nm, 200nm…etc
17. Oating: Water-based coating, Solvent-based coating, Decorative Coating, Latex paint;
    Paint: Car Paint, Finish paint, Wood paint, Industrial paint;
    Ink: Gravure Printing ink, Flexographic ink, Offset printing ink, Silk screen ink, UV light solid ink, Digital inkjet ink etc;
    Pigment: Dye, Color painted pigment, Pen liquid, Watercolor;
    Electronic Materials: Battery diaphragm alumina, Lithium iron phosphate, Ceramic slurry, Flame retardant;
    Food Industry: Chocolate Syrup, Paste etc;
    Pesticide: Pesticide suspension, EC, EW, ME;
    Daily Chemical Industry: Cosmetics, Liquid soap, Shower gel, Liquid detergent etc;
    Biological Medicine: Algae cell fragmentation, Micro-biological functional materials;
    Nano Materials: Metal oxide, Magnetic Materials, Paper industry, Optoelectronic industry.
    Professional technical supports & Processing Machines
    Our engineers are around 20years rich experience in this area, professional skills and stable processing.
    We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.
