Basic Info

Model NO.	GM1324 Super Fine Grinding Mill
Type	Ball Mill
Motor Type	AC Motor
Motor Power	15KW
Rotationl Speed	41.6 R/Min
Application	Mine
Materials	All Kinds of Materials
Condition	New
Product Name	Ball Mill,Ball Grinding Mill,Grinding Equipment
Capacity	0.6-1.5 T/H
Liners Materials	High Manganese Steel
Feeding Size	25mm
Main Products	Ball Mill, Wet Pan Mill, Jaw Crusher,Shaker Table
Loading Steel Balls	1.8 Tons
Weight	6660kgs
MOQ	1 Set
Price	Negotiation
After-Service	Video Guidance
Operation	Easy
Color	as Your Request
Advantages	Professional Manufacturer, Easy Operation
Transport Package	Standard Package
Specification	4743*1850*1400mm
Trademark	Hengchang Ball mill
Origin	Jiangxi, China
HS Code	8474202000
Production Capacity	50 Sets/Month

Packaging & Delivery

Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 6000.000kg

Product Description

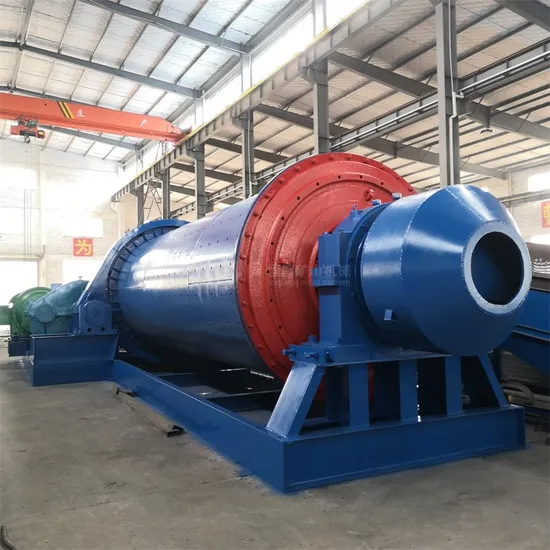

(ON Promotion New!!) 1-2Tph Wet Mineral Grinding Equipment Quartz Sand Ball Mill Rock Ore Super Fine Grinding Mill With Original Factory Price

Click to Send Inquiry Now Ball Mill Machine is a key equipment to grind all kinds of ores and other materials. Which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. It can suit wet mill and also dry milling, usually depend on the materials and its usage.

Main Features1. Wide usage, simple structure, convenient maintenance;2. Big capacity, continuous working;3. Body liners and grinding medium could be made of various of materials, good corrosion resistance;4. Easy installation, adjustment, and operation.Working PrincipleBall Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.Marketing Countries: We have provided the Ball Mill for many customers such as from in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia, Tanzania, Angola, Canada, Thailand, Chile, Peru,USA,Australia ect. For Alluvial gold mining grinding plant, copper ore grinding plant, rock stone grinding plant, gold ore grinding plant,ect.Technical Parameters

Model	Max. ball load(t)	Capacity(t/h)	Motor power(kw)	Dimension(LxWxH)mm	Weight(kg)
GM0718	0.8	0.4-1.1	7.5	4043×1450×1200	4350
GM0912	1.1	0.3-0.9	11	3843×1850×1400	4210
GM0918	1.5	0.5-1.3	15	4443×1850×1400	6078
GM0921	1.8	0.6-1.5	18.5	4743×1850×1400	6660
GM0933	2.7	0.9-2.3	22	5943×1850×1400	7770
GM1224	4	1.6-4.1	30	5540×2300×1850	10020
GM1230	5.3	2.2-5.5	37	6340×2300×1850	11230
GM1245	7.3	3.0-7.5	55	7540×2300×1850	13210
GM1524	7	2.8-6.5	55	6830×2930×2060	15430
GM1530	9	3.5-8.0	75	7430×2930×2060	16843
GM1545	13.5	5.5-13.5	90	8930×2930×2060	20000
GM1557	17	7-15.5	110	10130×2930×2060	23597
GM1830	13	3.0-17.0	130	9525×3960×2250	29490
GM1845	19	5.2-26.0	155	10925×3960×2250	34210
GM1864	27	8.0-40.0	210	12925×3960×2250	42440
GM2130	20	4.0-30.0	180	8475×4060×3400	41965
GM2145	25	5.6-42.0	280	9975×4060×3400	49230
GM2430	26.5	6.5-82	280	9225×5005×3970	63684
GM2445	32.5	8-100	380	10570×5005×3970	72284
GM2730	34	15-115	420	10575×5610×4500	88400
GM2745	40	17.5-135	475	11175×5610×4500	90420
GM3230	44	50-90	500	11000×7200×5700	124000
GM3245	65	100-145	630	13000×7200×5700	145000
